Master range

Renault Trucks Master

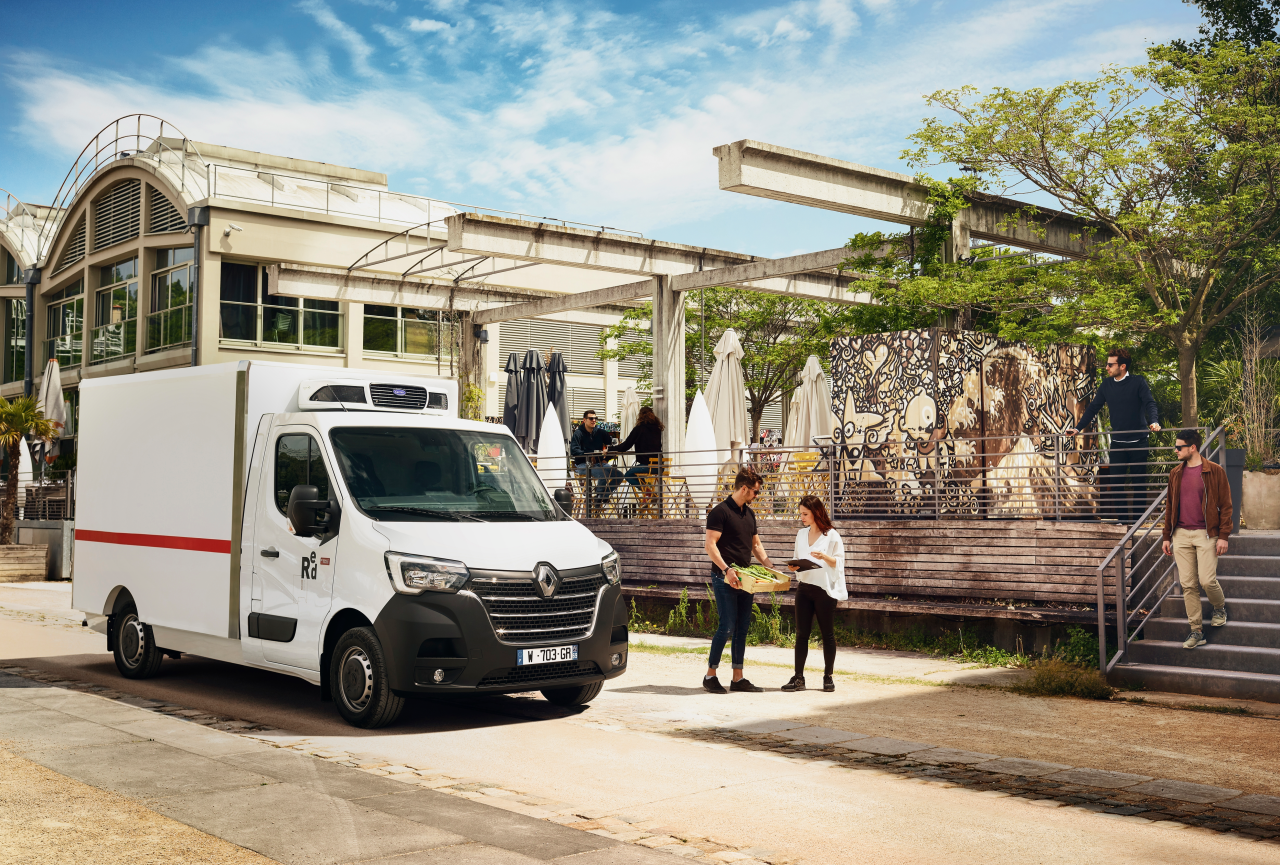

Renault Trucks Master refrigerated transport delivering in town

READY TO WORK FOR ALL ACTIVITIES

Single and double van cab, single and double chassis, platform cab, all profiles geared to your activity’s needs and constraints. Whatever your Renault Trucks Master model, take advantage of new high-performance and more fuel-efficient twin-turbo engines (from 110 hp to 180 hp), as well as the electric motor option.

Renault Trucks Master used for goods delivery to a customer

Only in our network: The Renault Trucks Master Red EDITION

Discover Renault Trucks’ Master Red EDITION, exclusive to Renault Trucks. Designed by professionals for professionals, it comes equipped with many features as standard for even greater comfort, efficiency and safety.

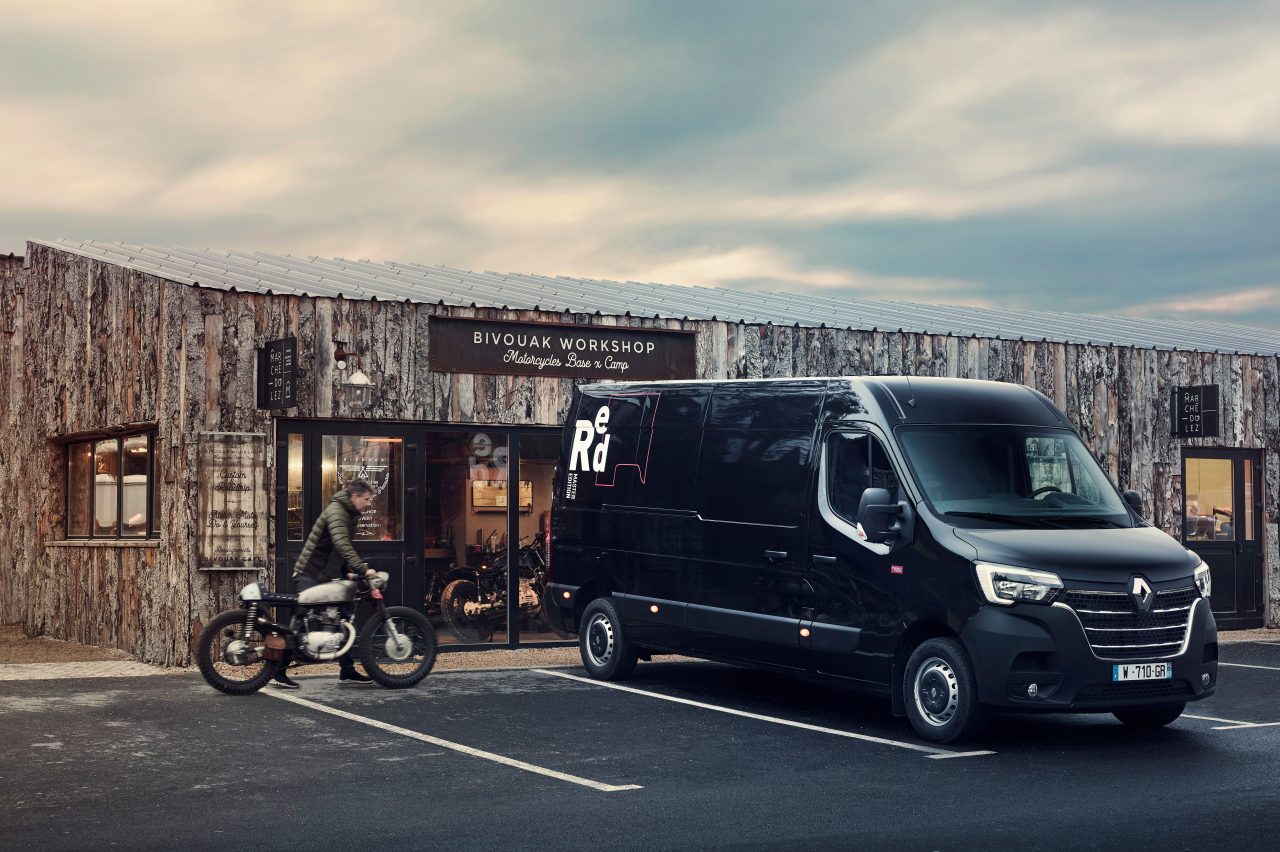

Renault Trucks Master Red EDITION
Moteur Master

NEW EURO 6 & VI ENGINES

The engines, compliant with the Euro 6 D-Full or Euro VI Step E standards, are available in a wide number of capacities, all significantly reducing polluting emissions. Many driving assistance systems and a robotised gearbox ensure fuel consumption is kept under control. An all-electric version is also available.

A wide range of WLTP or NEDC certified engines available to meet environmental and business constraints.

BI-TURBO ENGINES AVAILABLE ON THE WHOLE RANGE UP TO 400 NM TORQUE

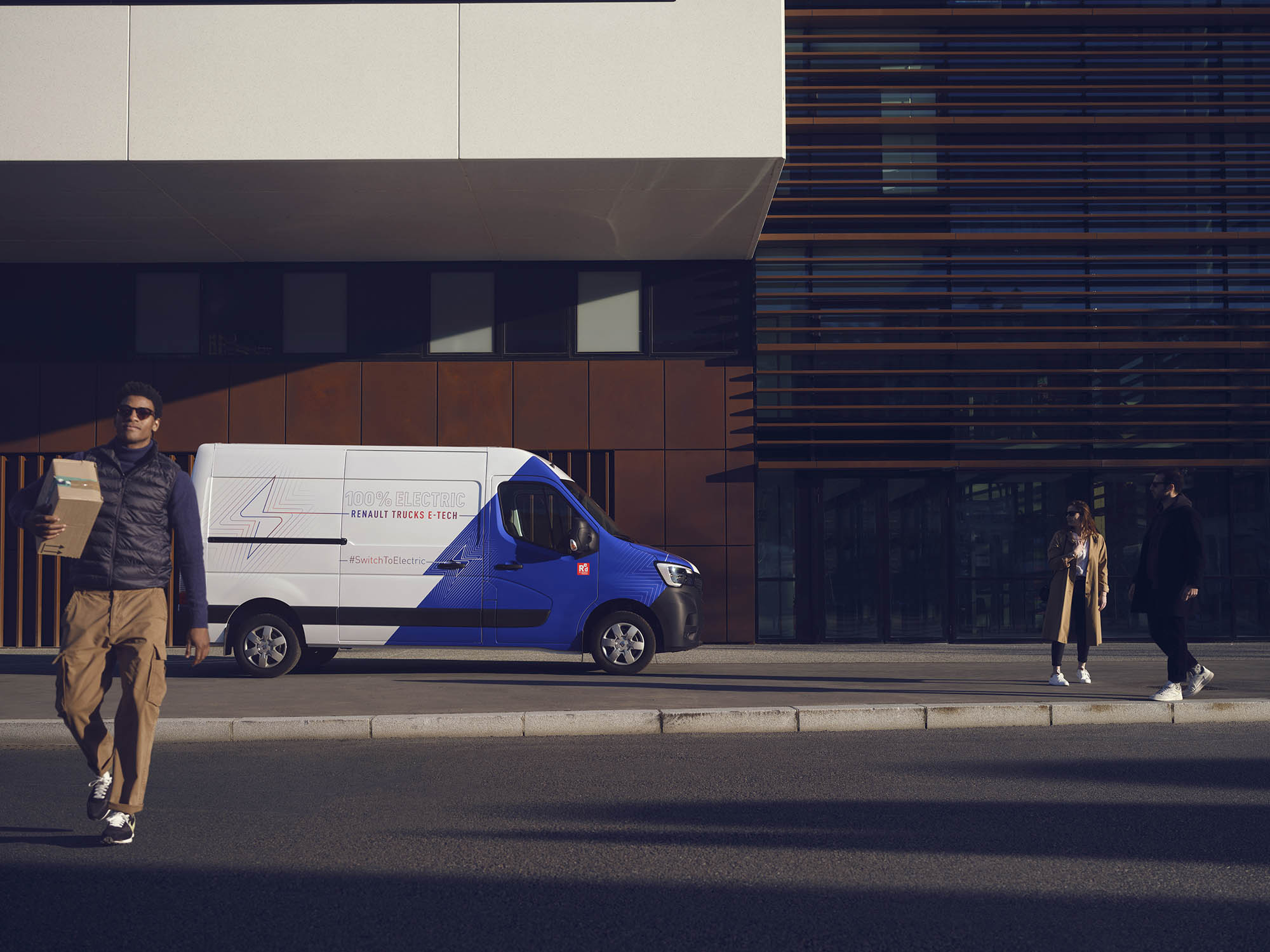

Renault Trucks Master Z.E.

RENAULT TRUCKS MASTER Z.E.: ZERO TAILPIPE EMISSIONS

Available at 3100kgs (Van and Platform only) and 3500kgs (Van Platform and Chassis Cab)

  • All-electric version for accessing low emission environments
  • Charges in 6h
  • 33 kW / h battery and 120 km of autonomy in actual use
  • Available in van (including minibus conversion), platform cab and chassis cab
Renault Trucks Master Grand volume

OUTSTANDING LOADING CAPACITY AND VOLUME

Van volume from 8 to 17 m3, wide rear and side openings, allowing bulky objects to be loaded easily, one of the best payloads on the market: Renault Trucks Master is the ideal vehicle for meeting the needs of the most demanding activities.

L4 H3 REARWHEEL DRIVE VERSION: with a loading capacity of 17 m3, 4,383 mm of useable length and 2,048 mm of useable height.

Renault Trucks Master Red EDITION plancher cabine

READY TO BODY FOR ALL ACTIVITIES

Renault Trucks Master features a modular structure, a removable rear crossmember and specific equipment to facilitate body mounting. Offering one of the most extensive vehicle length ranges on the market, it can meet all activities’ needs.



PRE-FITTING AND EQUIPMENT to facilitate bodywork fitting and integration.



MODULAR CHASSIS STRUCTURE for faster body mounting.



A SITE DEDICATED TO BODY BUILDERS

Visit our website dedicated to body builders. It provides all the information needed for your vehicle’s body fitting (vehicle structure, bodymounting plans and instructions) via http://bbportal.renault-trucks.com

Master

Internal roof height up to 2144mm

  • 1 -  Up to 1,820 mm
  • 2 - 1,580 mm
  • 3 - 1,380 mm
  • 4 - 5 ideal loading heights from 542 mm

TO LOAD UP TO 5 EUROPALETTES made possible by a large surface area on the single rear wheel version.

BODIED VERSION

Renault Trucks Master box bodied version





BOX BODIED VERSION

 20 or 22 m3 with tail lift, deflector or Luton body.

TIPPER VERSION

Renault Trucks Master tipper version

TIPPER VERSION (alloy or steel) with or without cab toolbox.

Available as both 1 or 3 way design

ALWAYS READY TO WORK

Renault Trucks Master

ROBUST AND RELIABLE UNDER ALL CONDITIONS

  • 1 Up to 1,850 kg load capacity on the front axle (3.5 t to 4.5 t)
  • 2 Steel protection sump guard under the engine
  • 3 Load capacity on the rear axle of up to 3,200 kg (4.5 t twin wheel version)
  • 4 Side member reinforcements on the chassis for added strength and durability



GTW UP TO 7.5 T

Robustness Master

PERFECTLY AT HOME ON ALL SURFACES

1 Twin tyres on 3.5 t to 4.5 t models deliver better traction on difficult surfaces

2 All weather tyres*

3 Steel protection under the engine*

AVAILABLE IN BOTH FRONT WHEEL DRIVE, REAR WHEEL DRIVE AND 4X4



* Optional

Extended grip Master

EXTENDED GRIP

Electronic management for operating on all types of surface (sand, snow, mud, etc.), available as standard on both front wheel and rear wheel drives.

4 wheels drive Master

FOUR-WHEEL DRIVE VERSION

BECAUSE A COMMERCIAL VEHICLE MUST FACILITATE YOUR WORK

Inside cab Master

EVERYTHING WITHIN YOUR REACH

  • 1 - Cruise control or speed limiter
  • 2 - Driver or driver and passenger airbags, plus optional lateral airbags
  • 3 - 3.5” driver customisable screen
  • 4 - Medianav navigation with DAB digital radio, TMC traffic information, Android AutoTM and Apple CarPlay smartphone replication
  • 5 - Consolidated and easy-access controls
  • 6 - Air conditioning
  • 7 - Open and closed dashboard storage
Simple cab Master

CABS VERSIONS

SINGLE CAB VERSION

2 or 3 seats. Cabs available up to 7 seats.



CREW CAB VERSION

Available with a second row of 4 seats with factory bulkhead behind, ideal for those applications requiring the movement of more personnel as well as equipment in the rear of the Van.



BULKHEADS

Steel bulkheads as standard with options available including window for greater visibility into rear cargo compartment.

RETRACTABLE TABLET SHELF

RETRACTABLE TABLET SHELF

incorporated into the dashboard for A4 documents.

Door Opening

DOORS OPEN UP TO 270 °

To facilitate maximum loading apertures, 270 degree doors are available as an option or part of our Delivery Pack so safe and easy cargo loading.

Renault Trucks Master Tipper

WORKING COMFORT

  • 1 - Optimised cab access with a first step at a height of 430 mm
  • 2 - Low chassis height from 741 mm to facilitate loading and unloading operations

SAFETY FIRST!

Renault Trucks Electronic Stability Control

Electronic Stability Control - ESC

fitted as standard to help drivers maintain trajectory and prevent the vehicle from overturning in critical situations.

Renault Trucks Master using front and rear sensor for easier parking

Optional Front and Rear Parking Sensors

emit an audible signal when an obstacle is detected.

SIDE WIND ASSISTANCE

SIDE WIND ASSISTANCE

Available on our Vans and Crew Vans this system helps the driver stay in the lane when the wind is coming from the side.

BLIND SPOT ALERT

BLIND SPOT ALERT

Warns the driver of blind spot dangers by a warning light in the mirrors.

LANE DEPARTURE WARNING

LANE DEPARTURE WARNING

an audible signal warns the driver in the event of any involuntary deviation from the vehicle’s trajectory.

Discover our Renault Trucks Master in details

TECHNICAL INFORMATION

  FRONT WHEEL DRIVE REAR WHEEL DRIVE - SINGLE TYRES REAR WHEEL DRIVE - TWIN TYRES
USAGE Payload and road passenger transport  Heavy loads and towing and/or off-road
Benefits  Loading threshold lowered by 13 mm  Improved maneuverability. Reduced turning radius, greater GTW.
Engines  Euro 6 D-Full (Light Duty) Euro VI E (Heavy Duty)  Euro VI E (Heavy Duty)
Gearbox Manual 6-speed or robotised  6-speed manual
GVW / GTW  3.3 t / 5.8 t 3.5 t / 6 t 3.5 t / 6 t  3.5 t / 7 t 4.5 t / 7.5 t
